Solutions for Inaccessible Assets

Putting Safety First

Dedicated Sensors

Due to changes with MSHA and OSHA, many assets can no longer be measured via walk around programs.  To maintain these assets in the ongoing program, ITR offers a basic data acquisition solution.

For assets that are inaccessible or not safe to measure during normal operating conditions, we have the solution.  Your ITR Account Manager will work with you to implement cost-effective measuring solutions appropriate to the operating conditions of each particular asset.

Product Details

810 Series DCN
Permanent Install

  • Up to 36 channels data acquisition
  • Configurable for IEPE/ICP or current loop sensors with signal condition modules
  • BNC, 2-pin, or 4-pin military grade connectors for waveform data acquisition
  • Conditioned signal relays for pass-thru to control system PLC or HMI alarm
  • Designed for high moisture and dust environments and mild abuse/drops
  • 120VAC or 24VDC
  • Standard enclosure: 14” x 12” x 8” NEMA 4x

820 Series PCN
Temporary Install

  • 5-channel IEPE/ICP data acquisition (2 channels are IEPE/ICP on/off selectable)
  • Digital tachometer input
  • Two anti-aliasing functions designed for 0-12.5kHz (vibration) or 20kHz-100kHz (ultrasound)
  • 120VAC or 24VDC
  • BNC, 2-pin, or 4-pin military grade connectors for waveform data acquisition
  • ITR Perceptum Expert System installed on Windows 7 Embedded platform
  • Designed for seamless interface with ITR PdM Partner and related cloud-based services
  • Standard enclosure: 10.5” x 8.5” x 6” NEMA 4x

SMART MONITORING - CMAS

ITR CMAS technology is a permanently installed, intelligent, continuous monitoring system with worldwide expert analysis services.  CMAS is not only part of an asset’s brain, it is also the healthcare professional with the expertise to identify problems before they occur and the direct-line access to the most experienced data analysts in the world.

WIRELESS MONITORING

ITR’s wireless vibration and temperature sensor is cloud based, easily configured, and can set and send alerts to the maintenance team.  This is not a PdM tool, it truly is a “alarm clock” to notify customers of potential and developing problems.

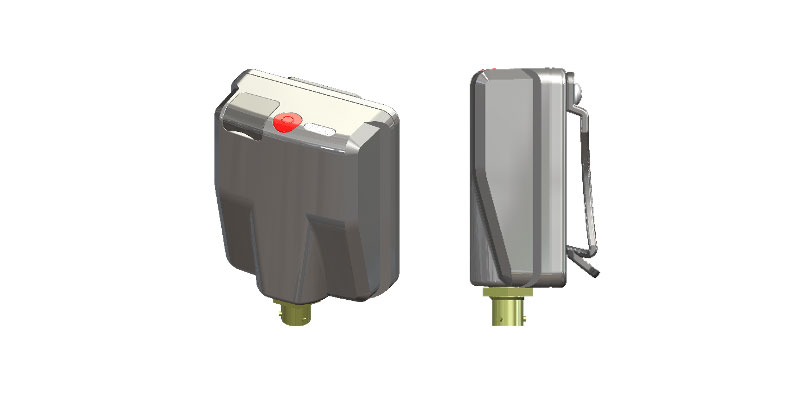

Portable Aquisition Device (PAD)

The ITR PAD™ is a battery powered portable vibration signal acquisition device which communicates with smart phones/tablets wirelessly for mobile use. Users can easily configure the device and view real-time data and spectrum waveforms through the app on phones/tablets. The real-time data can also be sent to ITR servers through the app for further analysis or storage.  The fully charged battery can last around 6 hours under continuous operation.

ROUTE BASED MONITORING

Portable (or route-based) condition monitoring remains the most prevalent method used by companies across all industries. ITR’s DCU offers affordable, flexible and portable vibration monitoring specifically designed for high volume PdM programs in the harshest industrial environments. The ITR DCU is built on three decades of triaxial data acquisition technology.

In the field the ITR DCU is capable of capturing high volume triaxial measurement data at any type of manufacturing facility. The ability to capture this data so efficiently allows an ITR vibration report to be issued within 2-3 business days of data collection. Minimal turn-around time of reporting provides the opportunity to properly allocate resources and time.

DEDICATED SENSORS

For assets that are inaccessible or not safe to measure during normal operating conditions, we have the solution.  Your ITR Account Manager will work with you to implement cost-effective monitoring solutions appropriate to the operating conditions of each particular asset.
